Solid carbide machine taps with internal cooling for machining of hardened materials
E.1634.1 -
- Cutting Data
Suitable for material
(Click for material suitability)P
General construction steel / free machining steel
| Material | <500 N/mm² | <700 N/mm² | <850 N/mm² | <1000 N/mm² | <1400 N/mm² |
|---|---|---|---|---|---|
| Suitability |
P
Heat treatable steel
| Material | <850 N/mm² | <1000 N/mm² | <1400 N/mm² | >1400 N/mm² |
|---|---|---|---|---|
| Suitability |
M
Rust and acid constant steels
| Material | <700 N/mm² | >700 N/mm² |
|---|---|---|
| Suitability |
K
Cast iron and cast iron alloy
| Material | Cast iron until 180 HB | Metallable cast iron | Cast iron with nodular graphite |
|---|---|---|---|
| Suitability |
N
Non-ferrous metal, plastics, graphite
| Material | Aluminium und AL-alloyed until 6% Si | Aluminium und AL-alloyed (under 12% Si) | Aluminium alloyed over 12% Si | Copper, brass, bronze, red brass | Plastics - thermoplast | Plastics - duroplast | GFK/CFK | Graphite |
|---|---|---|---|---|---|---|---|---|
| Suitability |
S
Special alloy and titanium
| Material | Inconel, Hastelloy, Nimonic, Monel | Titanium |
|---|---|---|
| Suitability |
H
Hardened steel
| Material | 45-55 HRC | 55-60 HRC | 60-65 HRC |
|---|---|---|---|
| Suitability |
|
|

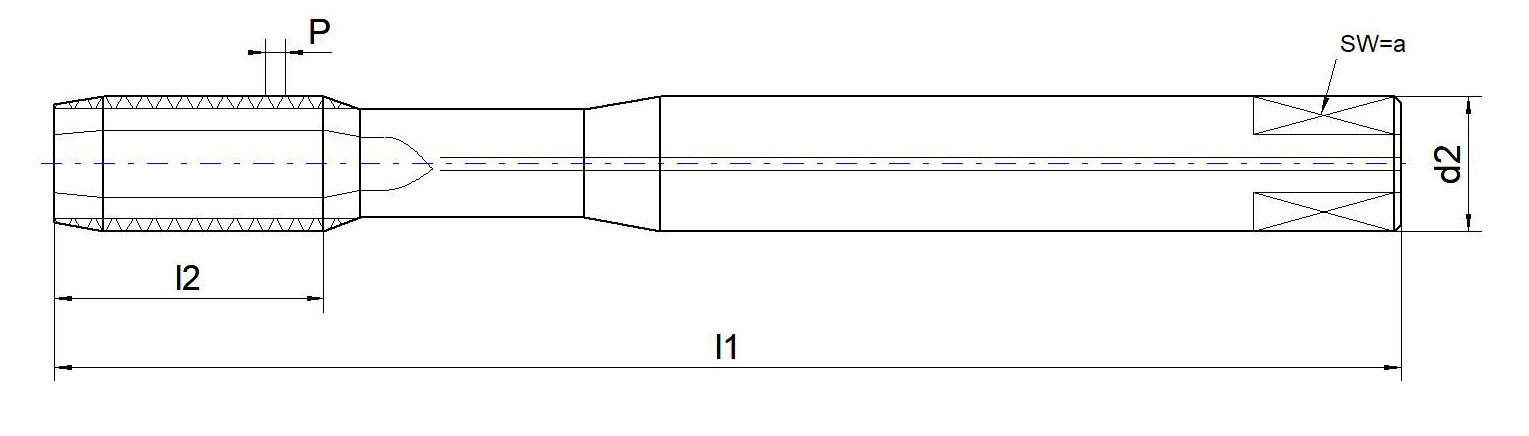

available variants
E.1634.1.M03
M 3
2.5
56
10
4,90
3,5
0,50
E.1634.1.M04
M 4
3.3
63
12
4,90
4,5
0,70
E.1634.1.M05
M 5
4.2
70
14
4,90
6,0
0,80
E.1634.1.M06
M 6
5
80
16
4,90
6,0
1,00
E.1634.1.M08
M 8
6.8
90
18
6,00
8,0
1,25
E.1634.1.M10
M 10
8.5
100
20
8,00
10,0
1,50
1
1 from 1
.jpg "tolerance 6g")
