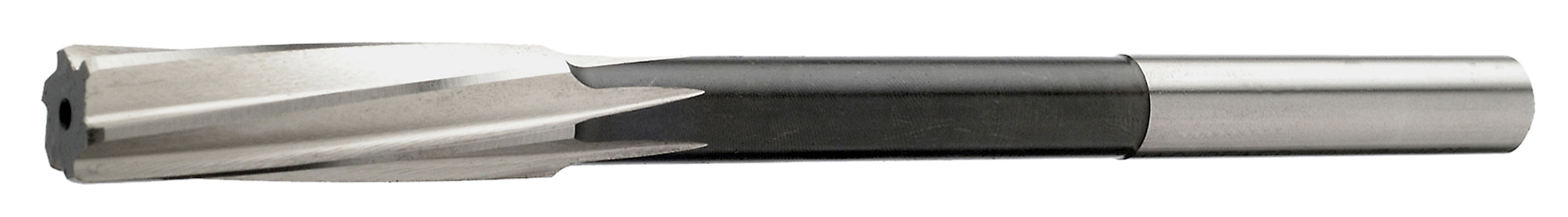

HSSE-Maschinenreibahlen

E.4616.0

Schnittdaten

Produktdatenblatt (pdf) herunterladen

Geeignet für Material

(Anklicken für Materialeignung)

Allgemeine Baustähle/Automatenstähle

Material	<500 N/mm²	<700 N/mm²	<850 N/mm²	<1000 N/mm²	<1400 N/mm²
Eignung

Vergütungsstähle

Material	<850 N/mm²	<1000 N/mm²	<1400 N/mm²	>1400 N/mm²
Eignung

Rost- und säurebeständige Stähle

Material	<700 N/mm²	>700 N/mm²
Eignung

Gusseisen und Gusseisenlegierungen

Material	Gusseisen bis 180 HB	Temper-<br>guss	Gusseisen mit Kugel-<br>graphit
Eignung

Ne-Metalle, Kunststoffe, Graphit

Material	AL & AL-Legierungen bis 6% Si	AL & AL-Legierungen unter 12% Si	AL-Legierungen über 12% Si	Kupfer, Messing, Bronze, Rotguss	Kunststoff- Thermoplaste	Kunststoff- Duroplaste	GFK/CFK	Graphit
Eignung

Sonderlegierungen & Titan

Material	Inconel, Hastelloy, Nimonic, Monel	Titan
Eignung

Gehärteter Stahl

Material	45-55 HRC	55-60 HRC	60-65 HRC
Eignung

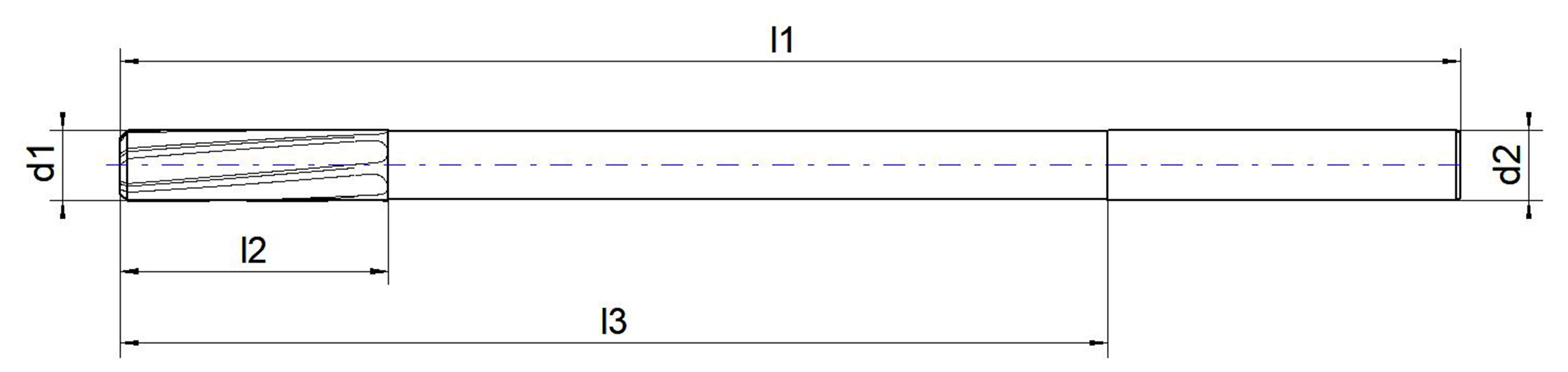

Artikel-Nr.	- 0.97 0.98 0.99 1 1.01 1.02 1.03 1.04 1.05 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.96 1.97 1.98 1.99 2 2.01 2.02 2.03 2.04 2.05 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 2.96 2.97 2.98 2.99 3 3.01 3.02 3.03 3.04 3.05 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 3.96 3.97 3.98 3.99 4 4.01 4.02 4.03 4.04 4.05 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 4.96 4.97 4.98 4.99 5 5.01 5.02 5.03 5.04 5.05 5.1 5.2 5.3 5.4 5.5 5.6 5.8 5.9 5.96 5.97 5.98 5.99 6 6.01 6.02 6.03 6.04 6.05 6.1 6.2 6.3 6.4 6.5 6.6 6.8 6.97 6.98 6.99 7 7.01 7.02 7.03 7.05 7.1 7.3 7.4 7.5 7.6 7.7 7.8 7.96 7.97 7.98 7.99 8 8.01 8.02 8.03 8.04 8.05 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 8.9 8.96 8.97 8.98 8.99 9 9.01 9.02 9.03 9.04 9.05 9.5 9.7 9.8 9.96 9.97 9.98 9.99 10 10.01 10.02 10.03 10.04 10.05 10.1 10.2 10.3 10.5 10.9 10.96 10.98 10.99 11 11.01 11.02 11.98 11.99 12 12.01 12.02 12.03 12.04 12.05 12.97 12.98 12.99 13 13.01 13.02 13.7 14.7 14.97 14.98 15.01 15.4 15.6 15.7 15.8 15.9 16.4 16.6 16.7 16.8 16.9 16.97 16.98 16.99 17 17.01 17.02 17.03 17.04 17.97 17.99 18 18.01 18.02 18.04 18.05 18.98 19 19.01 19.02 19.03 19.04 19.5 19.97 19.99 20 20.01	38 34 - 36 40 43 46 49 53 57 61 65 70 75 80 86 93 101 109 117 125 133 142 151 160 162 170 175 182 195	12 5.5 - 6.5 8 9 10 11 14 15 16 18 19 21 23 26 28 31 33 36 38 41 44 47 50 52 54 56 60	14 15 - 15.5 16.5 18 20 22 28 24 25 29 33 37 42 47 52 57 65 63 73 81 85 93 102 111 114 117 115 120 130 132 150	1,0 2,0 3,0 4,0 5,0 6,0 8,0 10,0 - 13,7 14,7 14,97 14,98 15,01 15,4 15,6 15,7 15,8 15,9 16,4 16,6 16,7 16,8 16,9 16,97 16,98 16,99 17,0 17,01 17,02 17,03 17,04 17,97 17,99 18,0 18,01 18,02 18,04 18,05 18,98 19,0 19,01 19,02 19,03 19,04 19,5 19,97 19,99 20,0 20,01	- 3 4 6 8
E.4616.0.0090-0095	-	38	12	14	1,0	-
E.4616.0.0097	0.97	34	5.5	15	1,0	3
E.4616.0.0098	0.98	34	5.5	15	1,0	3
E.4616.0.0099	0.99	34	5.5	15	1,0	3
E.4616.0.0100	1	34	5.5	15	1,0	3
E.4616.0.0101	1.01	34	5.5	15	1,0	3
E.4616.0.0102	1.02	34	5.5	15	1,0	3
E.4616.0.0103	1.03	34	5.5	15	1,0	3
E.4616.0.0104	1.04	34	5.5	15	1,0	3
E.4616.0.0105	1.05	34	5.5	15	1,0	3
E.4616.0.0106-0144	-	-	-	-	1,0	-
E.4616.0.0110	1.1	36	6.5	15.5	1,0	3
E.4616.0.0120	1.2	38	8	16.5	2,0	3
E.4616.0.0130	1.3	38	8	16.5	2,0	3
E.4616.0.0140	1.4	40	8	18	2,0	3
E.4616.0.0145-0179	-	-	-	-	2,0	-
E.4616.0.0150	1.5	40	8	18	2,0	3
E.4616.0.0160	1.6	43	9	20	2,0	4
E.4616.0.0170	1.7	43	9	20	2,0	4
E.4616.0.0180	1.8	46	10	22	2,0	4
E.4616.0.0180-0195	-	46	10	28	2,0	4
E.4616.0.0196	1.96	49	11	24	2,0	4
E.4616.0.0197	1.97	49	11	24	2,0	4
E.4616.0.0198	1.98	49	11	24	2,0	4
E.4616.0.0199	1.99	49	11	24	2,0	4
E.4616.0.0200	2	49	11	24	2,0	4
E.4616.0.0201	2.01	49	11	24	2,0	4
E.4616.0.0202	2.02	49	11	24	2,0	4
E.4616.0.0203	2.03	49	11	24	2,0	4
E.4616.0.0204	2.04	49	11	24	2,0	4
E.4616.0.0205	2.05	49	11	24	2,0	4
E.4616.0.0210	2.1	49	11	24	2,0	4
E.4616.0.0220	2.2	53	12	25	3,0	4
E.4616.0.0230	2.3	53	12	25	3,0	4
E.4616.0.0231-0295	-	-	-	-	3,0	-
E.4616.0.0240	2.4	57	14	29	3,0	4
E.4616.0.0250	2.5	57	14	29	3,0	4
E.4616.0.0260	2.6	57	14	29	3,0	4
E.4616.0.0270	2.7	61	15	33	3,0	4
E.4616.0.0280	2.8	61	15	33	3,0	6
E.4616.0.0290	2.9	61	15	33	3,0	6
E.4616.0.0296	2.96	61	15	33	3,0	6
E.4616.0.0297	2.97	61	15	33	3,0	6
E.4616.0.0298	2.98	61	15	33	3,0	6
E.4616.0.0299	2.99	61	15	33	3,0	6
E.4616.0.0300	3	61	15	33	3,0	6
E.4616.0.0301	3.01	65	16	37	4,0	6
E.4616.0.0302	3.02	65	16	37	4,0	6
E.4616.0.0303	3.03	65	16	37	4,0	6
E.4616.0.0304	3.04	65	16	37	4,0	6
E.4616.0.0305	3.05	65	16	37	4,0	6
E.4616.0.0310	3.1	65	16	37	4,0	6
E.4616.0.0320	3.2	65	16	37	4,0	6
E.4616.0.0330	3.3	65	16	37	4,0	6
E.4616.0.0336-0375	-	-	-	-	4,0	-
E.4616.0.0340	3.4	70	18	42	4,0	6
E.4616.0.0350	3.5	70	18	42	4,0	6
E.4616.0.0360	3.6	70	18	42	4,0	6
E.4616.0.0370	3.7	70	18	42	4,0	6
E.4616.0.0376-0395	-	-	-	-	4,0	-
E.4616.0.0380	3.8	75	19	47	4,0	6
E.4616.0.0390	3.9	75	19	47	4,0	6
E.4616.0.0396	3.96	75	19	47	4,0	6
E.4616.0.0397	3.97	75	19	47	4,0	6
E.4616.0.0398	3.98	75	19	47	4,0	6
E.4616.0.0399	3.99	75	19	47	4,0	6
E.4616.0.0400	4	75	19	47	4,0	6
E.4616.0.0401	4.01	75	19	47	4,0	6
E.4616.0.0402	4.02	75	19	47	4,0	6
E.4616.0.0403	4.03	75	19	47	4,0	6
E.4616.0.0404	4.04	75	19	47	4,0	6
E.4616.0.0405	4.05	75	19	47	4,0	6
E.4616.0.0406-0425	-	-	-	-	4,0	-
E.4616.0.0410	4.1	75	19	47	4,0	6
E.4616.0.0420	4.2	75	19	47	4,0	6
E.4616.0.0426-0475	-	-	-	-	4,0	-
E.4616.0.0430	4.3	80	21	52	5,0	6
E.4616.0.0440	4.4	80	21	52	5,0	6
E.4616.0.0450	4.5	80	21	52	5,0	6
E.4616.0.0460	4.6	80	21	52	5,0	6
E.4616.0.0470	4.7	80	21	52	5,0	6
E.4616.0.0480	4.8	86	23	52	5,0	6
E.4616.0.0490	4.9	86	23	52	5,0	6
E.4616.0.0496	4.96	86	23	52	5,0	6
E.4616.0.0497	4.97	86	23	52	5,0	6
E.4616.0.0498	4.98	86	23	52	5,0	6
E.4616.0.0499	4.99	86	23	52	5,0	6
E.4616.0.0500	5	86	23	52	5,0	6
E.4616.0.0501	5.01	86	23	52	5,0	6
E.4616.0.0502	5.02	86	23	52	5,0	6
E.4616.0.0503	5.03	86	23	52	5,0	6
E.4616.0.0504	5.04	86	23	52	5,0	6
E.4616.0.0505	5.05	86	23	52	5,0	6
E.4616.0.0510	5.1	86	23	52	5,0	6
E.4616.0.0520	5.2	86	23	52	5,0	6
E.4616.0.0530	5.3	86	23	52	5,0	6
E.4616.0.0531-0580	-	-	-	-	5,0	-
E.4616.0.0540	5.4	93	26	57	6,0	6
E.4616.0.0550	5.5	93	26	57	6,0	6
E.4616.0.0560	5.6	93	26	57	6,0	6
E.4616.0.0580	5.8	93	26	57	6,0	6
E.4616.0.0590	5.9	93	26	57	6,0	6
E.4616.0.0596	5.96	93	26	57	6,0	6
E.4616.0.0597	5.97	93	26	57	6,0	6
E.4616.0.0598	5.98	93	26	57	6,0	6
E.4616.0.0599	5.99	93	26	57	6,0	6
E.4616.0.0600	6	93	26	57	6,0	6
E.4616.0.0601	6.01	101	28	65	6,0	6
E.4616.0.0602	6.02	101	28	65	6,0	6
E.4616.0.0603	6.03	101	28	65	6,0	6
E.4616.0.0604	6.04	101	28	65	6,0	6
E.4616.0.0605	6.05	101	28	65	6,0	6
E.4616.0.0606-0670	-	101	28	63	6,0	6
E.4616.0.0610	6.1	101	28	65	6,0	6
E.4616.0.0620	6.2	101	28	65	6,0	6
E.4616.0.0630	6.3	101	28	65	6,0	6
E.4616.0.0640	6.4	101	28	65	6,0	6
E.4616.0.0650	6.5	101	28	65	6,0	6
E.4616.0.0660	6.6	101	28	65	6,0	6
E.4616.0.0671-0695	-	-	-	-	6,0	-
E.4616.0.0680	6.8	109	31	73	8,0	6
E.4616.0.0697	6.97	109	31	73	8,0	6
E.4616.0.0698	6.98	109	31	73	8,0	6
E.4616.0.0699	6.99	109	31	73	8,0	6
E.4616.0.0700	7	109	31	73	8,0	6
E.4616.0.0701	7.01	109	31	73	8,0	6
E.4616.0.0702	7.02	109	31	73	8,0	6
E.4616.0.0703	7.03	109	31	73	8,0	6
E.4616.0.0705	7.05	109	31	73	8,0	6
E.4616.0.0706-0755	-	-	-	-	8,0	-
E.4616.0.0710	7.1	109	31	73	8,0	6
E.4616.0.0730	7.3	109	31	73	8,0	6
E.4616.0.0740	7.4	109	31	73	8,0	6
E.4616.0.0750	7.5	109	31	73	8,0	6
E.4616.0.0756-0795	-	-	-	-	8,0	-
E.4616.0.0760	7.6	117	33	81	8,0	6
E.4616.0.0770	7.7	117	33	81	8,0	6
E.4616.0.0780	7.8	117	33	81	8,0	6
E.4616.0.0796	7.96	117	33	81	8,0	6
E.4616.0.0797	7.97	117	33	81	8,0	6
E.4616.0.0798	7.98	117	33	81	8,0	6
E.4616.0.0799	7.99	117	33	81	8,0	6
E.4616.0.0800	8	117	33	81	8,0	6
E.4616.0.0801	8.01	117	33	81	8,0	6
E.4616.0.0802	8.02	117	33	81	8,0	6
E.4616.0.0803	8.03	117	33	81	8,0	6
E.4616.0.0804	8.04	117	33	81	8,0	6
E.4616.0.0805	8.05	117	33	81	8,0	6
E.4616.0.0810	8.1	117	33	81	8,0	6
E.4616.0.0820	8.2	117	33	81	8,0	6
E.4616.0.0830	8.3	117	33	81	8,0	6
E.4616.0.0840	8.4	117	33	81	8,0	6
E.4616.0.0850	8.5	117	33	81	8,0	6
E.4616.0.0856-0895	-	-	-	-	8,0	-
E.4616.0.0860	8.6	125	36	85	10,0	6
E.4616.0.0870	8.7	125	36	85	10,0	6
E.4616.0.0880	8.8	125	36	85	10,0	6
E.4616.0.0890	8.9	125	36	85	10,0	6
E.4616.0.0896	8.96	125	36	85	10,0	6
E.4616.0.0897	8.97	125	36	85	10,0	6
E.4616.0.0898	8.98	125	36	85	10,0	6
E.4616.0.0899	8.99	125	36	85	10,0	6
E.4616.0.0900	9	125	36	85	10,0	6
E.4616.0.0901	9.01	125	36	85	10,0	6
E.4616.0.0902	9.02	125	36	85	10,0	6
E.4616.0.0903	9.03	125	36	85	10,0	6
E.4616.0.0904	9.04	125	36	85	10,0	6
E.4616.0.0905	9.05	125	36	85	10,0	6
E.4616.0.0906-0955	-	-	-	-	10,0	-
E.4616.0.0950	9.5	125	36	85	10,0	6
E.4616.0.0970	9.7	133	38	93	10,0	6
E.4616.0.0980	9.8	133	38	93	10,0	6
E.4616.0.0996	9.96	133	38	93	10,0	6
E.4616.0.0997	9.97	133	38	93	10,0	6
E.4616.0.0998	9.98	133	38	93	10,0	6
E.4616.0.0999	9.99	133	38	93	10,0	6
E.4616.0.1000	10	133	38	93	10,0	6
E.4616.0.1001	10.01	133	38	93	10,0	6
E.4616.0.1002	10.02	133	38	93	10,0	6
E.4616.0.1003	10.03	133	38	93	10,0	6
E.4616.0.1004	10.04	133	38	93	10,0	6
E.4616.0.1005	10.05	133	38	93	10,0	6
E.4616.0.1010	10.1	133	38	93	10,0	6
E.4616.0.1020	10.2	133	38	93	10,0	6
E.4616.0.1030	10.3	133	38	93	10,0	6
E.4616.0.1050	10.5	133	38	93	10,0	6
E.4616.0.1056-1095	-	-	-	-	10,0	-
E.4616.0.1090	10.9	142	41	102	10,0	6
E.4616.0.1096	10.96	142	41	102	10,0	6
E.4616.0.1098	10.98	142	41	102	10,0	6
E.4616.0.1099	10.99	142	41	102	10,0	6
E.4616.0.1100	11	142	41	102	10,0	6
E.4616.0.1101	11.01	142	41	102	10,0	6
E.4616.0.1102	11.02	142	41	102	10,0	6
E.4616.0.1106-1155	-	-	-	-	10,0	-
E.4616.0.1156-1195	-	-	-	-	10,0	-
E.4616.0.1198	11.98	151	44	111	10,0	6
E.4616.0.1199	11.99	151	44	111	10,0	6
E.4616.0.1200	12	151	44	111	10,0	6
E.4616.0.1201	12.01	151	44	111	10,0	6
E.4616.0.1202	12.02	151	44	111	10,0	6
E.4616.0.1203	12.03	151	44	111	10,0	6
E.4616.0.1204	12.04	151	44	111	10,0	6
E.4616.0.1205	12.05	151	44	111	10,0	6
E.4616.0.1206-1320	-	151	44	111	10,0	6
E.4616.0.1297	12.97	151	44	111	10,0	8
E.4616.0.1298	12.98	151	44	111	10,0	8
E.4616.0.1299	12.99	151	44	111	10,0	8
E.4616.0.1300	13	151	44	111	10,0	8
E.4616.0.1301	13.01	151	44	111	10,0	8
E.4616.0.1302	13.02	151	44	111	10,0	8
E.4616.0.1321-1396	-	-	-	-	-	-
E.4616.0.1370	13.7	160	47	114	13,7	8
E.4616.0.1406-1496	-	162	50	117	-	-
E.4616.0.1470	14.7	162	50	115	14,7	-
E.4616.0.1497	14.97	162	50	115	14,97	-
E.4616.0.1498	14.98	162	50	115	14,98	-
E.4616.0.1501	15.01	162	50	115	15,01	-
E.4616.0.1540	15.4	170	52	120	15,4	-
E.4616.0.1560	15.6	170	52	120	15,6	-
E.4616.0.1570	15.7	170	52	120	15,7	-
E.4616.0.1580	15.8	170	52	120	15,8	-
E.4616.0.1590	15.9	170	52	120	15,9	-
E.4616.0.1606-1696	-	175	54	130	-	-
E.4616.0.1640	16.4	182	56	132	16,4	-
E.4616.0.1660	16.6	182	56	132	16,6	-
E.4616.0.1670	16.7	182	56	132	16,7	-
E.4616.0.1680	16.8	182	56	132	16,8	-
E.4616.0.1690	16.9	182	56	132	16,9	-
E.4616.0.1697	16.97	195	60	150	16,97	-
E.4616.0.1698	16.98	195	60	150	16,98	-
E.4616.0.1699	16.99	195	60	150	16,99	-
E.4616.0.1700	17	195	60	150	17,0	-
E.4616.0.1701	17.01	195	60	150	17,01	-
E.4616.0.1702	17.02	195	60	150	17,02	-
E.4616.0.1703	17.03	195	60	150	17,03	-
E.4616.0.1704	17.04	195	60	150	17,04	-
E.4616.0.1706-1796	-	195	60	150	-	-
E.4616.0.1797	17.97	195	60	150	17,97	-
E.4616.0.1799	17.99	195	60	150	17,99	-
E.4616.0.1800	18	195	60	150	18,0	-
E.4616.0.1801	18.01	195	60	150	18,01	-
E.4616.0.1802	18.02	195	60	150	18,02	-
E.4616.0.1804	18.04	195	60	150	18,04	-
E.4616.0.1805	18.05	195	60	150	18,05	-
E.4616.0.1806-1896	-	195	60	150	-	-
E.4616.0.1898	18.98	195	60	150	18,98	-
E.4616.0.1900	19	195	60	150	19,0	-
E.4616.0.1901	19.01	195	60	150	19,01	-
E.4616.0.1902	19.02	195	60	150	19,02	-
E.4616.0.1903	19.03	195	60	150	19,03	-
E.4616.0.1904	19.04	195	60	150	19,04	-
E.4616.0.1906-1996	-	195	60	150	-	-
E.4616.0.1950	19.5	195	60	150	19,5	-
E.4616.0.1997	19.97	195	60	150	19,97	-
E.4616.0.1999	19.99	195	60	150	19,99	-
E.4616.0.2000	20	195	60	150	20,0	-
E.4616.0.2001	20.01	195	60	150	20,01	-
