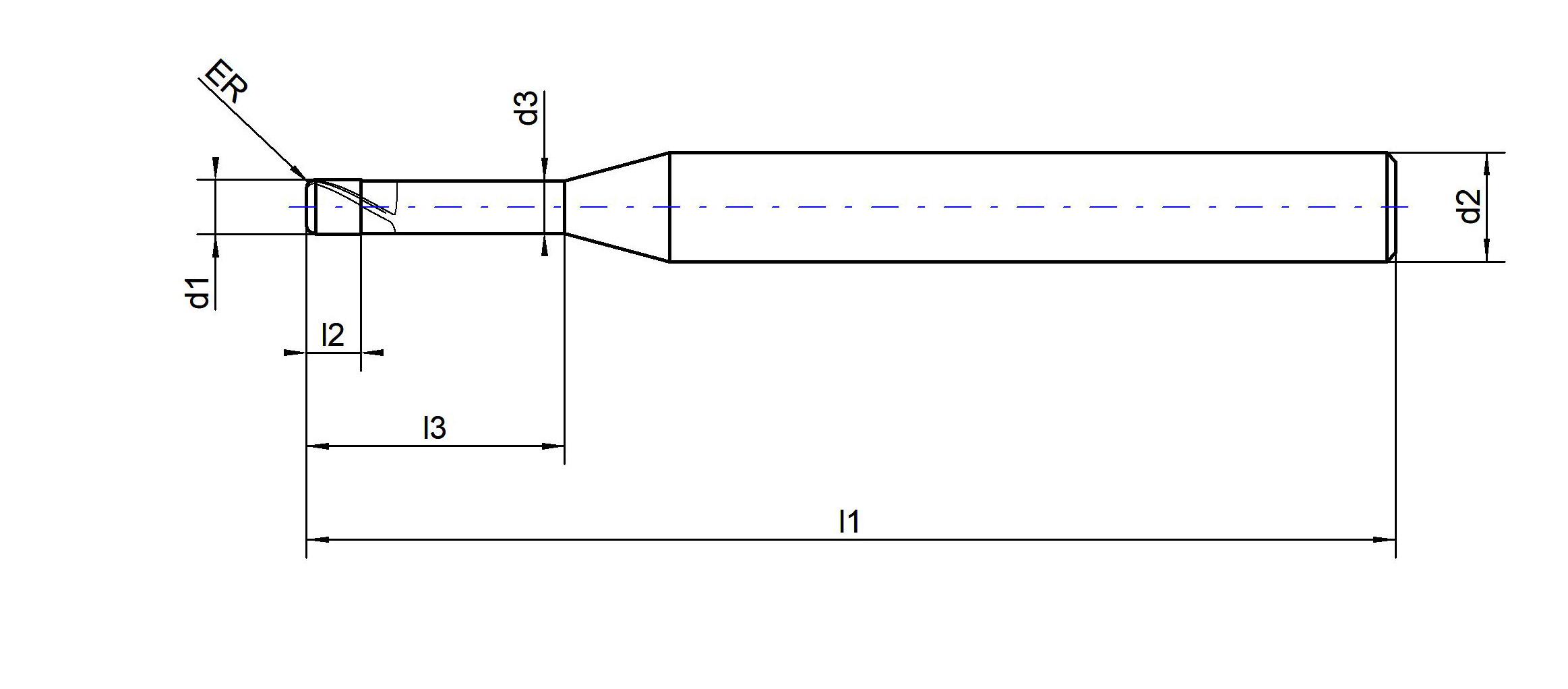

Solid carbide micro end mills 30° for moulds with corner radius

E.7805.1
VHM HA SPEZIAL_BESCHICHTUNG Z_2 DRALL_30 ER UNIFRAESER TROCKEN 65_HRC MICRO HSC WERKSNORM
Cutting data
Product data sheet (pdf) download

Suitable for material

(Click for material suitability)
P
General construction steel / free machining steel
Material <500 N/mm² <700 N/mm² <850 N/mm² <1000 N/mm² <1400 N/mm²
Suitability
P
Heat treatable steel
Material <850 N/mm² <1000 N/mm² <1400 N/mm² >1400 N/mm²
Suitability Conditionally suitable Suitable Suitable Suitable
M
Rust and acid constant steels
Material <700 N/mm² >700 N/mm²
Suitability
K
Cast iron and cast iron alloy
Material Cast iron until 180 HB Metallable cast iron Cast iron with nodular graphite
Suitability Suitable Suitable Suitable
N
Non-ferrous metal, plastics, graphite
Material Aluminium und AL-alloyed until 6% Si Aluminium und AL-alloyed (under 12% Si) Aluminium alloyed over 12% Si Copper, brass, bronze, red brass Plastics - thermoplast Plastics - duroplast GFK/CFK Graphite
Suitability
S
Special alloy and titanium
Material Inconel, Hastelloy, Nimonic, Monel Titanium
Suitability
H
Hardened steel
Material 45-55 HRC 55-60 HRC 60-65 HRC
Suitability Suitable Suitable Suitable
Product-Nr.
in stock Request Alternatives
E.7805.1.0020.010
0.2 0.02 0.18 40 0.2 1 4,0
E.7805.1.0020.015
0.2 0.02 0.18 40 0.2 1.5 4,0
E.7805.1.0030.010
0.3 0.05 0.28 40 0.3 1 4,0
E.7805.1.0030.020
0.3 0.05 0.28 40 0.3 2 4,0
E.7805.1.0030.030
0.3 0.05 0.28 40 0.3 3 4,0
E.7805.1.0040.010
0.4 0.05 0.38 40 0.4 1 4,0
E.7805.1.0040.020
0.4 0.05 0.38 40 0.4 2 4,0
E.7805.1.0040.030
0.4 0.05 0.38 40 0.4 3 4,0
E.7805.1.0040.040
0.4 0.05 0.38 40 0.4 4 4,0
E.7805.1.0050.020
0.5 0.05 0.48 45 0.5 2 4,0
E.7805.1.0050.025
0.5 0.05 0.48 45 0.5 2.5 4,0
E.7805.1.0050.040
0.5 0.05 0.48 45 0.5 4 4,0
E.7805.1.0050.060
0.5 0.05 0.48 45 0.5 6 4,0
E.7805.1.0060.020
0.6 0.05 0.58 45 0.6 2 4,0
E.7805.1.0060.040
0.6 0.05 0.58 45 0.6 4 4,0
E.7805.1.0060.060
0.6 0.05 0.58 45 0.6 6 4,0
E.7805.1.0060.080
0.6 0.05 0.58 45 0.6 8 4,0
E.7805.1.0080.040
0.8 0.05 0.77 45 0.8 4 4,0
E.7805.1.0080.060
0.8 0.05 0.77 45 0.8 6 4,0
E.7805.1.0080.080
0.8 0.05 0.77 45 0.8 8 4,0
E.7805.1.0100.040
1 0.1 0.95 45 1 4 4,0
E.7805.1.0100.060
1 0.1 0.95 45 1 6 4,0
E.7805.1.0100.080
1 0.1 0.95 45 1 8 4,0
E.7805.1.0100.100
1 0.1 0.95 50 1 10 4,0
E.7805.1.0100.120
1 0.1 0.95 50 1 12 4,0
E.7805.1.0100.160
1 0.1 0.95 50 1 16 4,0
E.7805.1.0100.200
1 0.1 0.95 50 1 20 4,0
E.7805.1.0150.060
1.5 0.1 1.44 45 1.5 6 4,0
E.7805.1.0150.080
1.5 0.1 1.44 45 1.5 8 4,0
E.7805.1.0150.100
1.5 0.1 1.44 50 1.5 10 4,0
E.7805.1.0150.120
1.5 0.1 1.44 50 1.5 12 4,0
E.7805.1.0150.200
1.5 0.1 1.44 50 1.5 20 4,0
E.7805.1.0200.060
2 0.2 1.92 45 2 6 4,0
E.7805.1.0200.080
2 0.2 1.92 45 2 8 4,0
E.7805.1.0200.100
2 0.2 1.92 50 2 10 4,0
E.7805.1.0200.120
2 0.2 1.92 50 2 12 4,0
E.7805.1.0200.200
2 0.2 1.92 50 2 20 4,0
E.7805.1.0200.250
2 0.2 1.92 60 2 25 4,0
E.7805.1.0250.160
2.5 0.2 2.42 50 2.5 16 4,0
E.7805.1.0250.200
2.5 0.2 2.42 50 2.5 20 4,0
E.7805.1.0300.100
3 0.5 2.9 50 3 10 6,0
E.7805.1.0300.120
3 0.5 2.9 50 3 12 6,0
E.7805.1.0300.160
3 0.5 2.9 55 3 16 6,0
E.7805.1.0300.200
3 0.5 2.9 60 3 20 6,0
E.7805.1.0300.250
3 0.5 2.9 65 3 25 6,0
E.7805.1.0300.300
3 0.5 2.9 70 3 30 6,0
E.7805.1.0400.200
4 0.5 3.9 60 4 20 6,0
E.7805.1.0400.250
4 0.5 3.9 65 4 25 6,0
E.7805.1.0400.300
4 0.5 3.9 70 4 30 6,0
E.7805.1.0400.350
4 0.5 3.9 75 4 35 6,0
E.7805.1.0500.150
5 0.5 4.9 60 6 15 6,0
E.7805.1.0500.250
5 0.5 4.9 70 6 25 6,0
E.7805.1.0500.300
5 0.5 4.9 70 6 30 6,0
E.7805.1.0500.400
5 0.5 4.9 80 6 40 6,0
E.7805.1.0600.200
6 0.5 5.9 60 7 20 6,0
E.7805.1.0600.400
6 0.5 5.9 80 7 40 6,0
