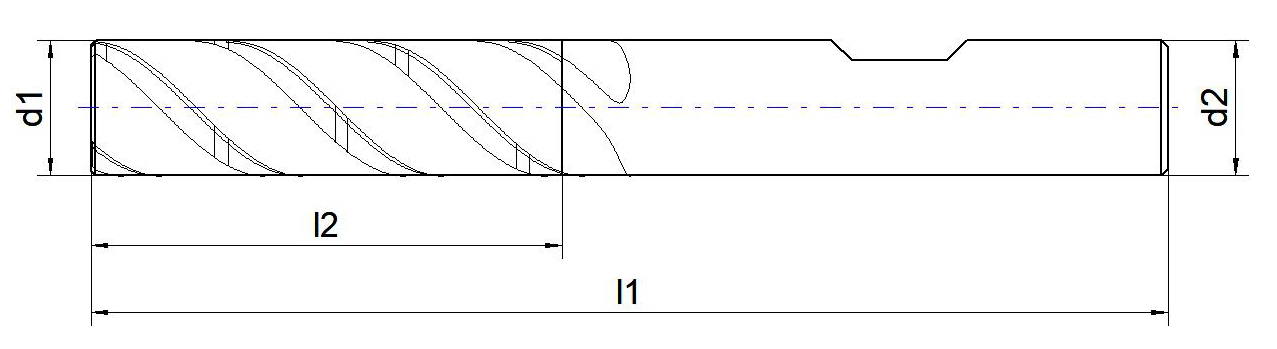

Solid carbide Performance end mill ³Trochoid", 45° (unequal pitch)
E.7820.1
Suitable for material
(Click for material suitability)P
General construction steel / free machining steel
| Material | <500 N/mm² | <700 N/mm² | <850 N/mm² | <1000 N/mm² | <1400 N/mm² |
|---|---|---|---|---|---|
| Suitability |
P
Heat treatable steel
| Material | <850 N/mm² | <1000 N/mm² | <1400 N/mm² | >1400 N/mm² |
|---|---|---|---|---|
| Suitability |
M
Rust and acid constant steels
| Material | <700 N/mm² | >700 N/mm² |
|---|---|---|
| Suitability |
K
Cast iron and cast iron alloy
| Material | Cast iron until 180 HB | Metallable cast iron | Cast iron with nodular graphite |
|---|---|---|---|
| Suitability |
N
Non-ferrous metal, plastics, graphite
| Material | Aluminium und AL-alloyed until 6% Si | Aluminium und AL-alloyed (under 12% Si) | Aluminium alloyed over 12% Si | Copper, brass, bronze, red brass | Plastics - thermoplast | Plastics - duroplast | GFK/CFK | Graphite |
|---|---|---|---|---|---|---|---|---|
| Suitability |
|
|
|
|
|
S
Special alloy and titanium
| Material | Inconel, Hastelloy, Nimonic, Monel | Titanium |
|---|---|---|
| Suitability |
H
Hardened steel
| Material | 45-55 HRC | 55-60 HRC | 60-65 HRC |
|---|---|---|---|
| Suitability |
| Product-Nr. |
|
|
|
|
|
in stock | Request | Alternatives |
|---|---|---|---|---|---|---|---|---|
| E.7820.1.0600 | 0,20 | 6 | 62 | 21 | 6,0 |
|
||
| E.7820.1.0800 | 0,20 | 8 | 68 | 28 | 8,0 |
|
||
| E.7820.1.1000 | 0,20 | 10 | 80 | 35 | 10,0 |
|
||
| E.7820.1.1200 | 0,20 | 12 | 93 | 42 | 12,0 |
|
||
| E.7820.1.1600 | 0,20 | 16 | 108 | 56 | 16,0 |
|
||
| E.7820.1.2000 | 0,20 | 20 | 126 | 70 | 20,0 |
|
